Quick Details

  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: SW
  • Model Number: 40Cr/45#
  • Material: Steel
  • Product: anchor block 12 holes
  • Anchor Hardness: Hrb50-100
  • Static Total Strain: 2.0%
  • Anchor Form: Single Hole or Multi Holes
  • Color: Galvanization/Black/ Steel
  • Certification: SGS,BV,ISO9001
  • Anchoring Efficiency: 0.95
  • Diameter: 12.7mm, 15.2mm, etc
  • Standard: GB/T14370-2007
  • Custom-Made: Can Be Customized

Packaging & Delivery

Packaging Details: packed with fumigated wooden Cases for anchor block 12 holes
Delivery Detail: Shipped in 10 days after payment
Product Description

who is the wedges and anchorage ?----about our company!


· Established in 2008

· Manufacturer and exporter of various prestressed anchors and all related assembly parts

· Specialized in supplying PC strand/ wire, corrugated duct, tension equipments,etc

· Market scale: both domestic and overseas

· Consecutive sales increasing of 8 years

· Passed the ISO9001:2008 and International certificate of BV and SGS

· Provide OEM and ODM service to all customers ( both domestic and overseas )

· Export to more than 25 countries in Europe, Middle East, Southeast Asia, Africa, South America,etc

· Our Mission is to offer High Quality performance & Cost Effective products to every client


Product Name
china supplier building materials wedges and anchorage offers free samples
Material
steeel
Color
gold/black
Standard
ISO,BV,SGS
Anchor Hardness
Hrb50-100
Anchor form
Single Hole or Multi Holes
Diameter
12.7mm, 15.2mm, etc
TYPE
ROUND/FALT/ETC
Used
construction,mining,railway,etc

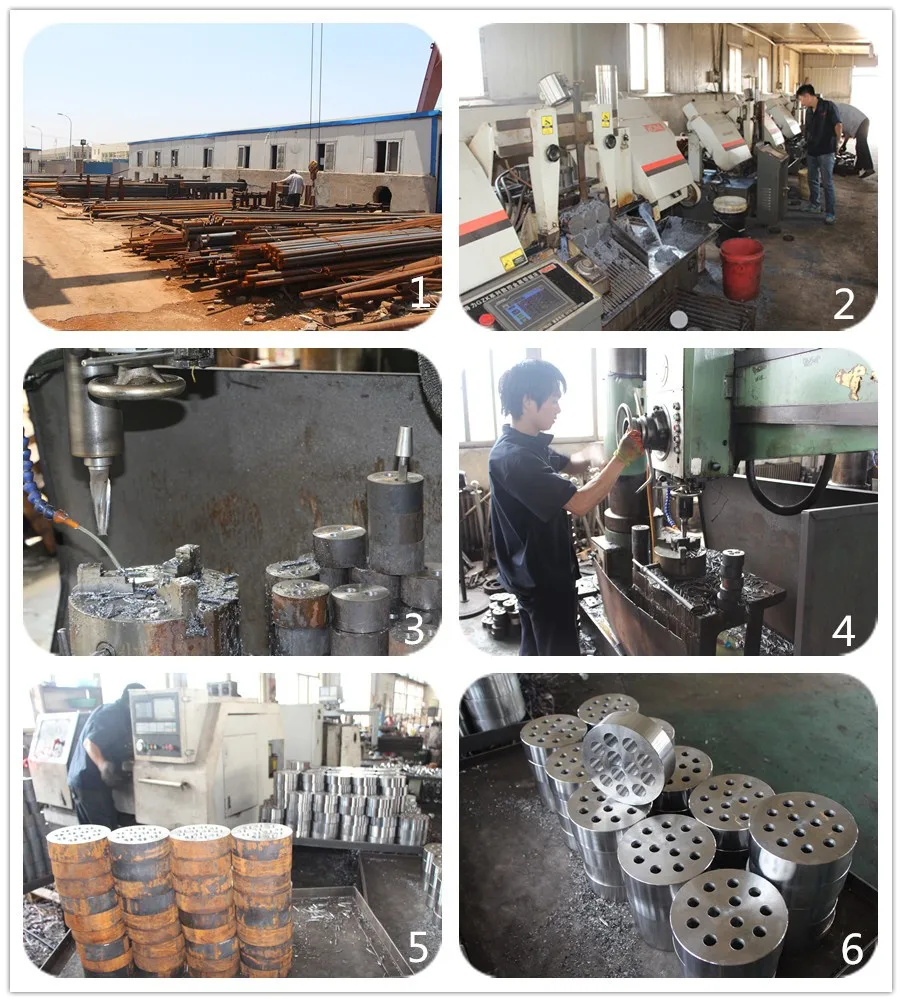

Flow chart

How does a wedges and anchorage meet you?

1.Raw Materials---2.1.Raw Materials---3.Holes Cone Shaped Drilling---4.Holes Fine Turning---5.Peeling---6.Chamfering---7.Deburring & Chamfering---8.Quality Checking---9.Static Loading Test---10.paperbox---11.woodcase---12.ready for shipping

Products Details

Application
----Prestressed Concrete Post Tensioning PC Steel Wire PT Anchor Wedges
----Prestressed Anchor system is a completed, independent building measure researched, it has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.
----It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials.

YJM System is consist of stress-end anchor, fixed-end anchor,anchor coupler and corrugated pipe. It can be divided into
YJM13,YJM15,YJM18 series of round anchors and BM13,BM15 series of flat anchors, we also have high-strength
steel wire YJM5,YJM7 series anchor.

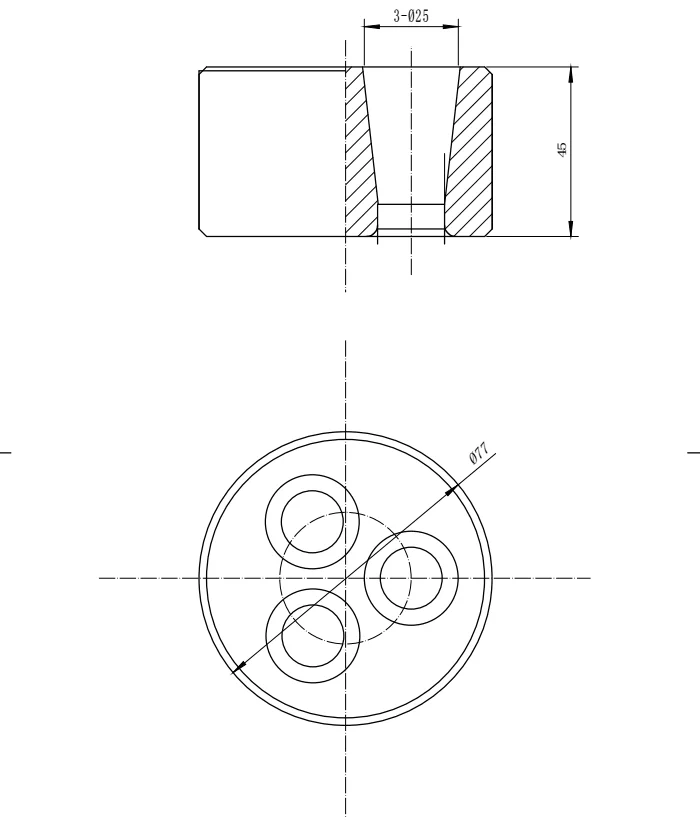

e.g. script of YM13-3  wedges and anchorage

wedges and anchorage  made by sunwin

Definition of Parts:
Wedge
Wedge is the key part of anchor system, which is made by high-class alloy steel 20CrMnTi. Its form is divided into two-chip and three-chip. The system apply to the two-chip YJM15 series, it can be used for round anchorage, flat anchorage, but also used for porous coupler.
Anchor head
Anchor head is the key part of bearing the prestressing tension, The round anchor head is made by 45# high-quality carbon construction steel, and the flat anchorage is made by 40Cr steel. Anchor head include round anchor head and flat anchor head
Anchor Bearing Plate
Anchor bearing plate is the key component, which transfer the load from anchor head to concrete under anchor. The method of transfer and distribution of stress affect the anti-cracking and load capacity of concrete. Bursting reinforcement used for distributing the concrete. For prevent concrete from crazing, and use the bursting reinforcement for strengthening tendons.
Metal Bellows
Metal bellows used for post tensionning prestress concrete structure or constructive pore-forming. It can be divided into round and flat by the section shape; divided into standard enhanced by radial stiffness; divided into metal and plastic tubes by materials, and the metal duct can be divided into galvanized and non-galvanized.

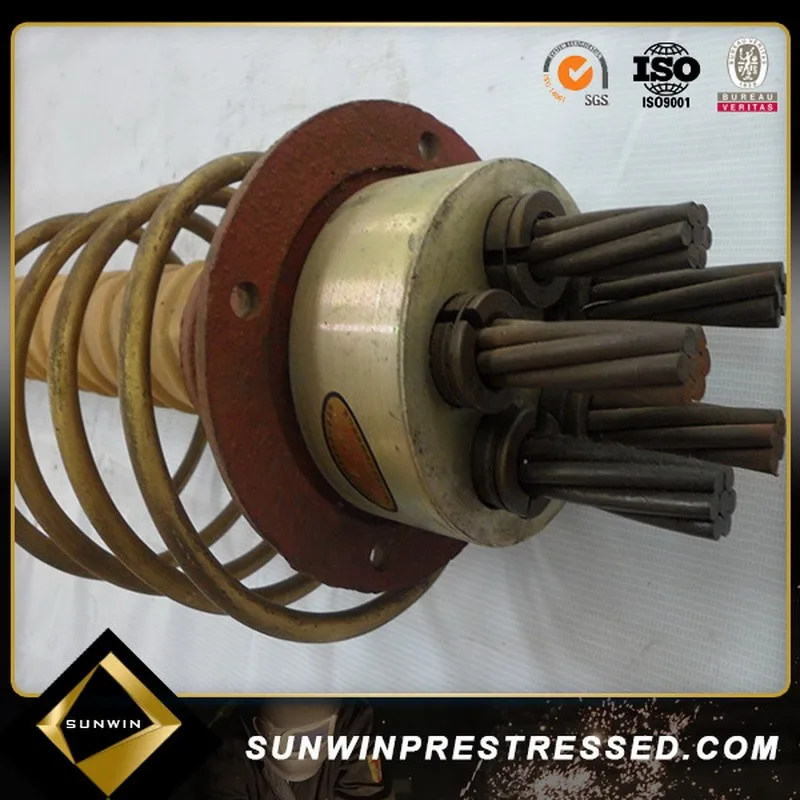

 wedges and anchorage

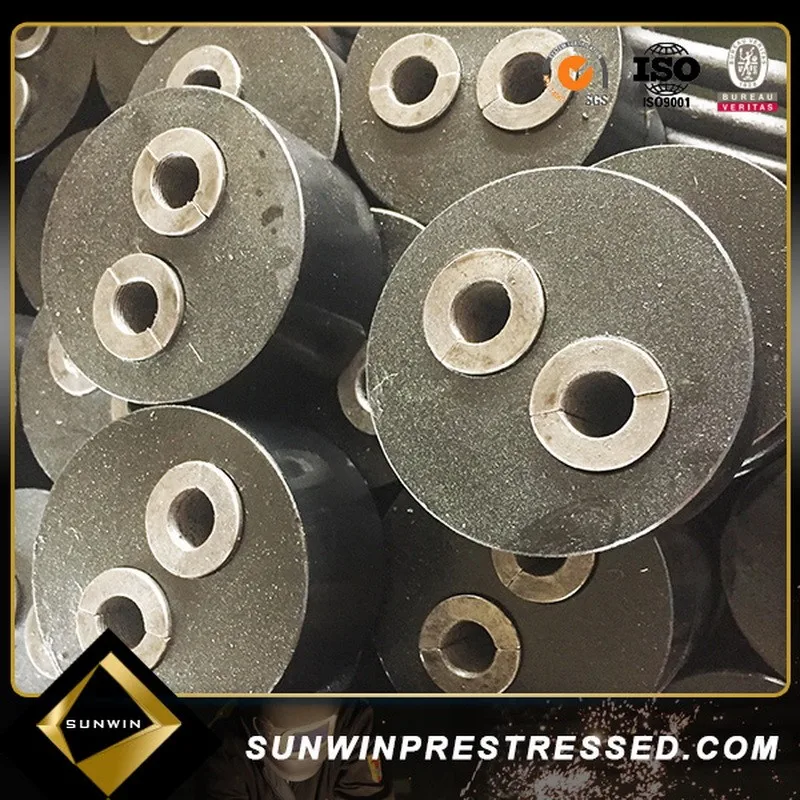

wedge in wedges and anchorage

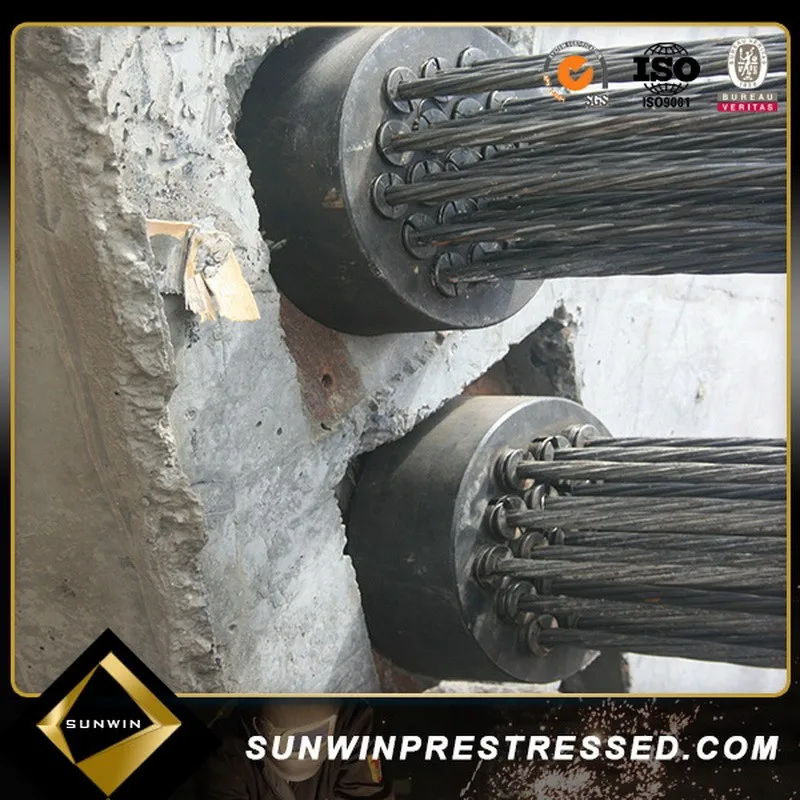

wedges and anchorage

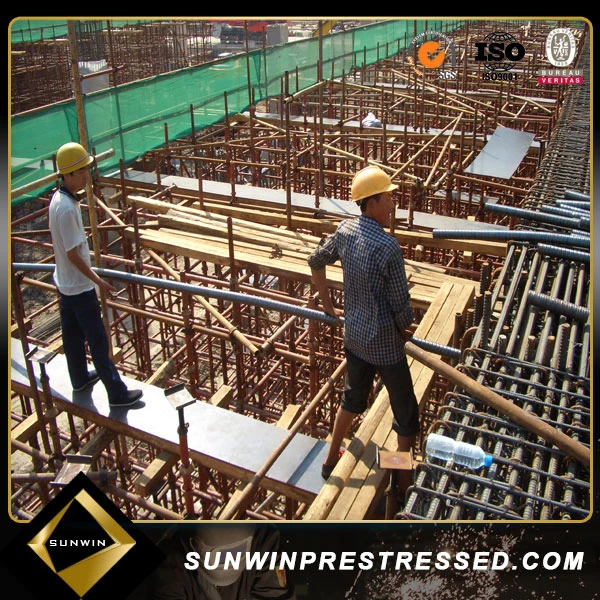

wedges and anchorage in engineer


Technical data
Prestressed Concrete Post Tensioning PC Steel Wire PT Anchor Wedges
1. YM15 applies to 15.2/15.24mm, 15.7mm pc strand.
2. YM13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.
3. YM18 applies to 17.8mm pc strand.
4. YM22 applies to 21.6/21.8mm pc strand.
5. YM11 applies to 10.8mm pc strand.
6. YM10 applies to 9.3mm, 9.53mm pc strand.
7. YM7, YM6, YM5 apply to 7.0mm, 6.0mm, 5.0mm spiral ribbed pc wire

Our anchor system has below features:
----Wide range application, it can anchor with standard strength of 1570Mpa-2000Mpa, with the diameter of 8mm,9mm,11mm,12.7mm,15.2mm,18mm pc strand and the high-strength steel wire with standard strength of 1570Mpa-1670Mpa, with the diameter of 5mm,7mm.
-----Wide range of choice, YJM series anchor system is suitable for the number of pc strand from 1-55 tendons, and can be produced as per customer requirement.
----With good stressing self-anchored function, Easy operation.
----With high anchoring efficiency and reliable anchor.
----The anchor structure size is reasonable, which can satisfy anchorage efficiency coefficient but also achieve anchorage of strand of short distance.


Why choose us

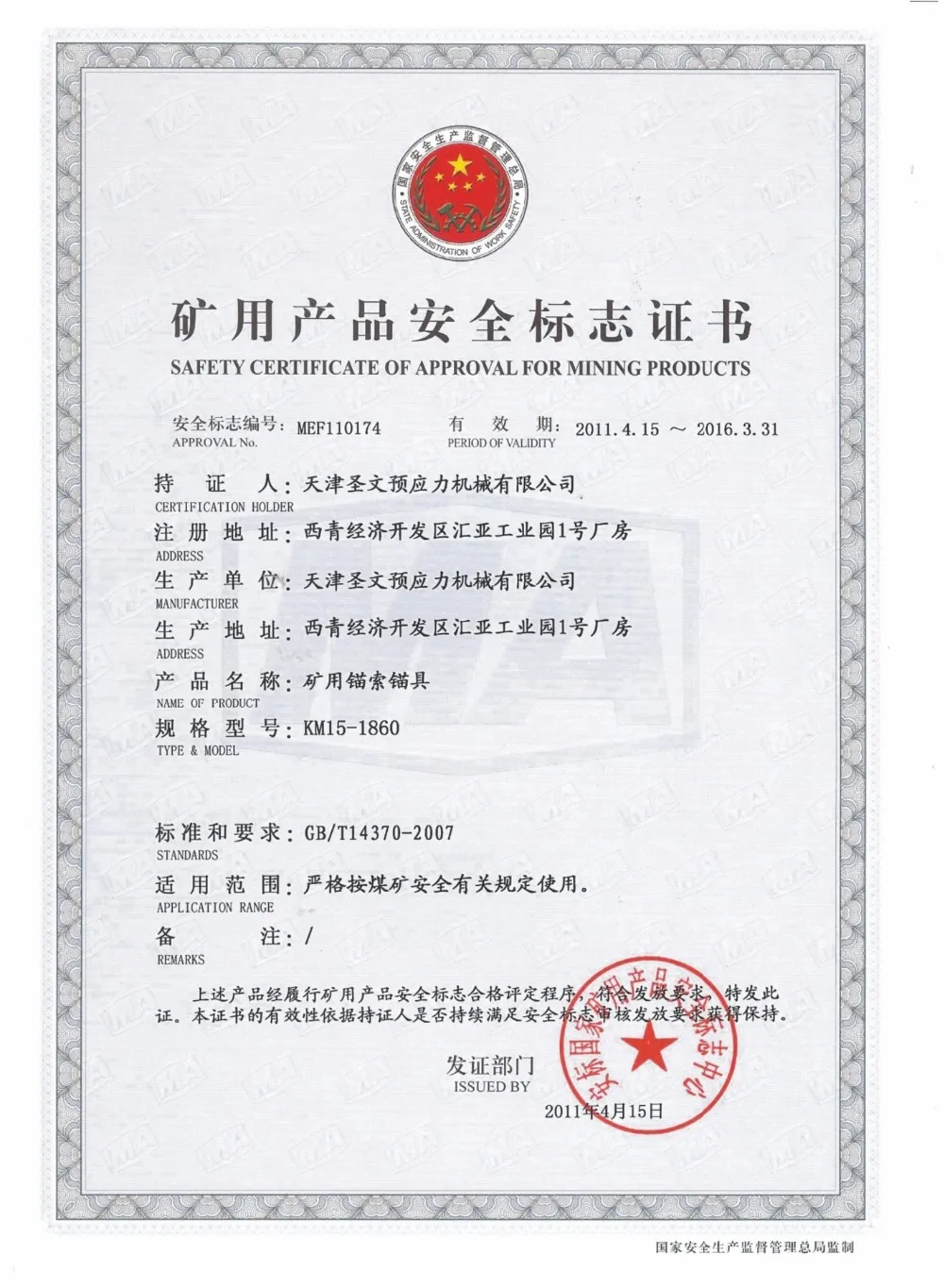

Our certificates:

We got amount of certifications by related departments

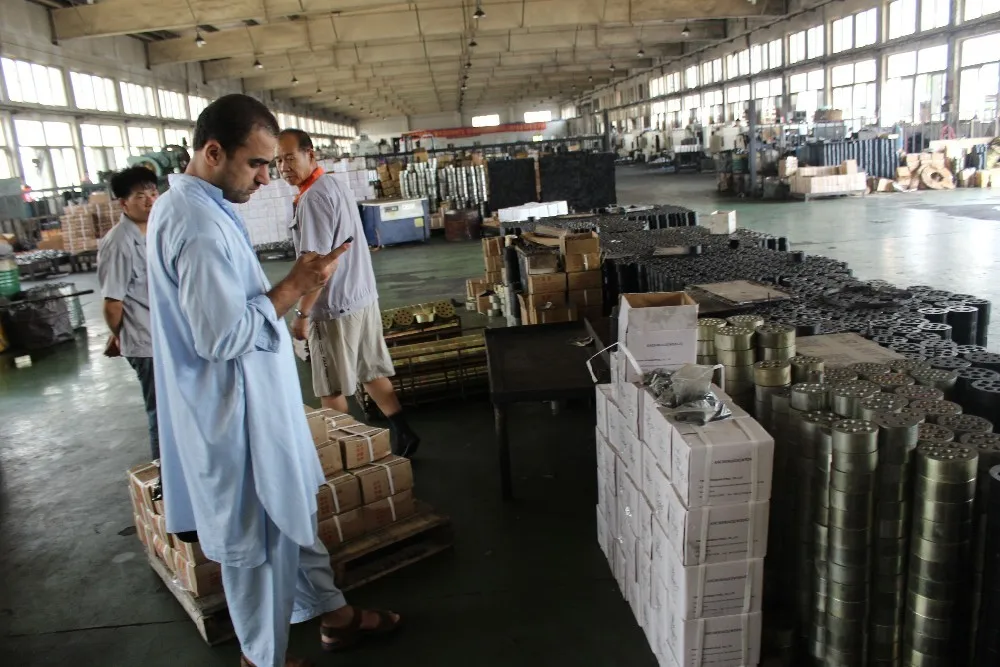

our factory


we can manufacture all kinds of anchorage and prestressed equipment according to your requrement and drawings .
Pre-stressing method is widely used in engineering structures in which anchorage plays a very important role.
The pre-stressed anchorage is the important part of a firm system of a pre-stressing anchor, and its capability influences the security of the pre-stress component directly.
complete sets of Anchor System:
Wedge, Anchorage ring, Bearing plate, Bursting reinforcement, Metal Bellows(mental ducts). And we have metal bellows moulding machine and flat pipe machine.
PC Steel Wire Anchor Wedges
We manufacture different kinds of anchor, hydraulic jack, PC steel wire, and prestressing equipment






     we do all the step seriously and strictly

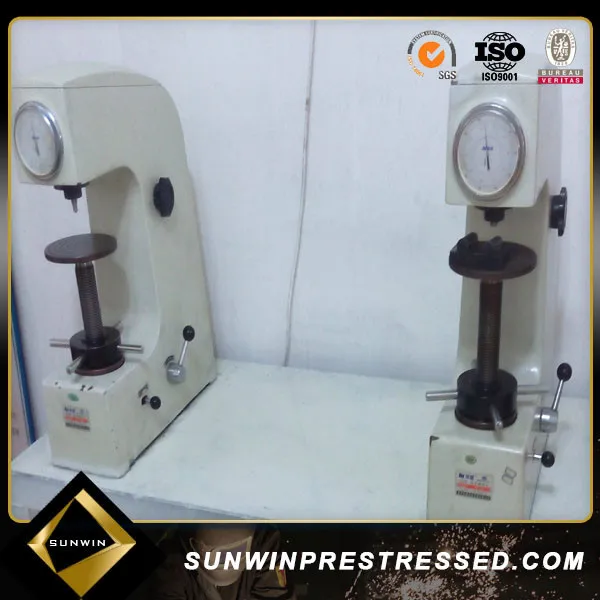

                                   our laboratray






pc cable anchorage testing

our cooperations

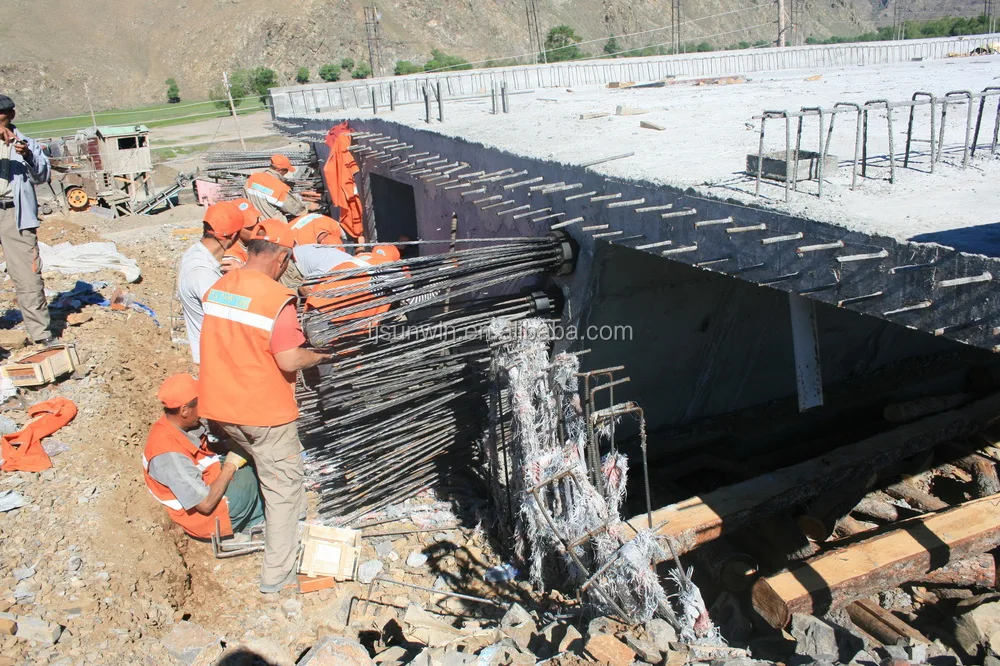

                                 mongolia project







                                  Vietnan project







                            Afhanistan Customers







                         Brazil customers

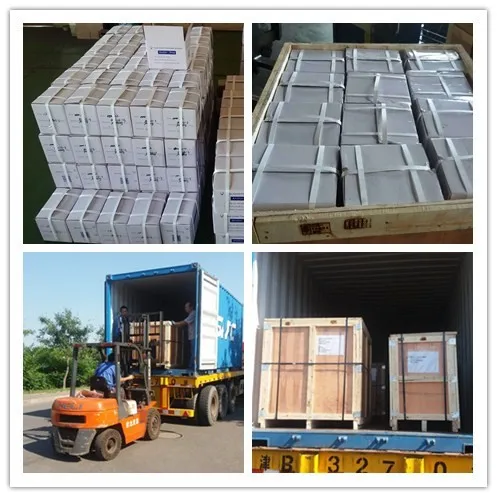

Packing & Delivery
Related Products

                anchor barrel

                  flat anchor


                 spiral ring
